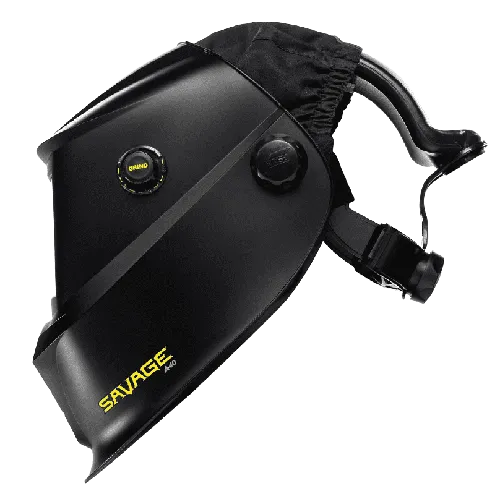

ESAB Savage A40 PAPR - Complete Kit
The Savage A40 PAPR pairs the advanced features of the Savage A40 welding helmet with a powerful PAPR system designed to filter 99.9% of fine particles from the air during routine procedures.
- NIOSH-approved PAPR filtration system delivers three setting adjustable flow from 170 to 230 liters per minute
- Convenient push-button interface with easy to read
- LCD display for PAPR adjustment
- High efficiency 2 stage filtration system with spark arrestor for added safety
- LCD display indicating fan speed, flow rate and battery charge level with additional audible alert for low battery
- High quality shielded air tube with simple connections
- Fully adjustable PAPR harness and multi-point helmet headgear adjustment for total comfort
- Four sensor ADF with adjustable shade, sensitivity and delay controls to dial in the precise darkness and reaction speed
Specifications
| Lens Viewing Area | 3.93 x 1.96 in. (100 x 50 mm) |
| Lens Shade | DIN 4, Adjustable 9-13 |
| Lens Power Supply | Replaceable CR2450 battery with solar backup |
| PAPR Power Supply | 4400mAh rechargeable battery, low battery alert |
| PAPR Airflow | Low: 170 lpm / Medium: 200 lpm / High: 230 lpm |
| Filtration Efficiency | HEPA |
| ADF Lens Sensors | 4 |
| ADF Switching Time @ 23°C | 0.07ms |
| Lens Classification | 1/1/1/2 |
| Standards | NIOSH, ANSI Z87.1, CSA Z94.3, CE EN379, EN175, & AS/NZS 1338.1 |
| Weight | 2.97lbs (1350g) |
Included in this Kit
- Savage A40 welding helmet
- PAPR blower unit & breathing tube
- Battery (2 each)
- Main filter (2 each)
- Pre-filter (6 each)
-
Inside / Outside cover lenses (2 of each)
- Battery charger
- Waist belt w/shoulder strap
- Portable air flow tester
- Spark arrestor for blower unit
- Carrying bag that fits all accessories
- ESAB Part Number: 0700002400
